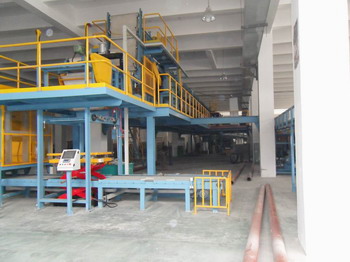

膠片冷卻聯動生產線

















































































設備用途 Equipment use

通過膠片冷卻聯動線的浸漬、掛膠風冷、擺放疊片給下道工序。

It moves through the batch off line, It includes dipping, fan cooling ,packer stacker and delivers to next process .



設備特點:Equipment characteristics

接取輸送機、打標裝置、浸漬冷卻裝置、膠片掛膠輸送裝置、一樓擺膠疊片裝置、二樓提升輸送機、二樓擺膠疊片裝置、切膠裝置等組成。

It consists of take-up conveying machine, printing system, dipping , fan cooling , first floor packer stacker , liftting equipment to second floor , and packer stacker on second floor ,and cutting unit .



主要技術參數Main technical parameters

序號

膠片寬度

Rubber tablet sheet width

膠片厚度

Rubber tablet sheet thickness

生產線速度

Production line speed

1

Max.900mm

Max.12mm

Max.40mm/min

2

膠片貯藏溫度

Rubber sheet reserve temperature

一次膠料重量

One time rubber material weight

擺放長度精度

Deposite length precision

3

Max.43

250-350 公斤/250-350 kg/batch

±50mm

4

膠片縱裁寬度

Rubber sheet longitudinal width

托盤進出擺膠片方式

Packer stacker method

膠片采樣方式

Rubber sheet sampling method

5

80mm-100mm

自動

Automatic

自動

Automatic
